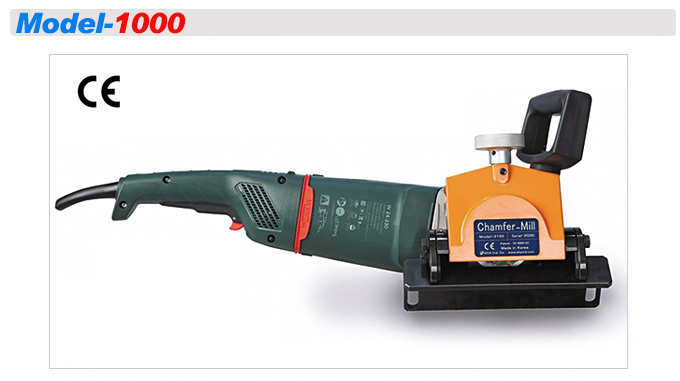

No Vibration!
- For beveling corners of steel plates before welding-portable beveler fot the purpose of improving welding quality

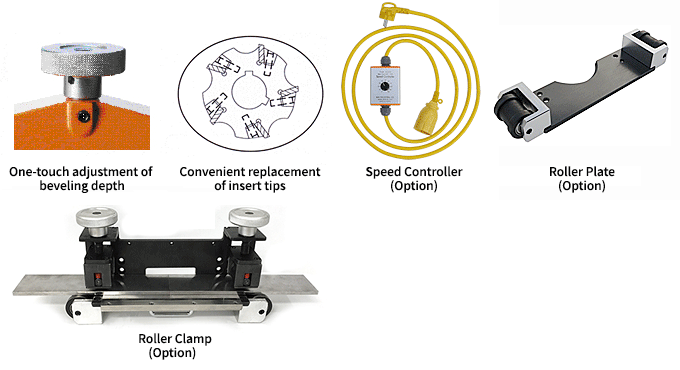

- Easy and simple to adjust beveling depth with one-touch operation
- Fine adjustment of beveling depth (adjustable by 0.16mm per click)
- Easy replacement of insert tips by improved cutter structure
- Clean beveled surface
- Possible to adjust beveling angles(from 15° to 60°)
- Can be used for beveling outside diameters of pipes with diameters of more than 6" (150A)
- Can be used for beveling stainless steels (Can use Speed Controller as an optional item)
- Adopted very durable motor (made in Germany)
- Patent Number 10-0952191
|
Advantages of using beveler for the improvement of welding quality
- Possible to improve welding quality by precise adjustment of angles and consistent beveling value
- Economical when considering overall factors like working hours, labor cost, consumed materials and work efficiency
- Safer working condition compared with grinding machines
- Much cleaner working environment compared with grinding machines
|
Model |
|
|
Maximum beveling width(B) |
10 mm |
21 mm |
..Maximum beveling thickness(45°)(A) |
7 mm |
15 mm |
Adjustable angle |
15° ~ 60°
|
15° ~ 60° |
Number of insert tips |
5 |
10 |
Weight |
10.4 kg |
10.6 kg |
Motor specifications |
230V (or 120V) 50/60Hz 2400W |
|
|
Model |
AP 1020 - 00 |
Minimum beveling width |
5 ~ 40 mm |
..Maximum beveling width(B) |
21 mm |
..Maximum beveling thickness(45°)(A) |
15 mm
|
Adjustable angle |
0 ~ 45° |
Weight |
16.4 + 23 + 8.6 kg |
|
|
|
