No Vibration!
- For beveling corners of steel plates before welding-portable beveler fot the purpose of improving welding quality
- Easy and simple to adjust beveling depth with one-touch operation
- Fine adjustment of beveling depth (adjustable by 0.16mm per click)
- Easy replacement of insert tips by improved cutter structure
- Clean beveled surface
- Possible to adjust beveling angles(from 15° to 60°)
- Can be used for beveling outside diameters of pipes with diameters of more than 6" (150A)
- Can be used for beveling stainless steels (Can use Speed Controller as an optional item)
- Adopted very durable motor (made in Germany)
- Patent Number 10-0952191
|
Advantages of using beveler for the improvement of welding quality
- Possible to improve welding quality by precise adjustment of angles and consistent beveling value
- Economical when considering overall factors like working hours, labor cost, consumed materials and work efficiency
- Safer working condition compared with grinding machines
- Much cleaner working environment compared with grinding machines
|
Chamfer-Mill |
Model-1000 |

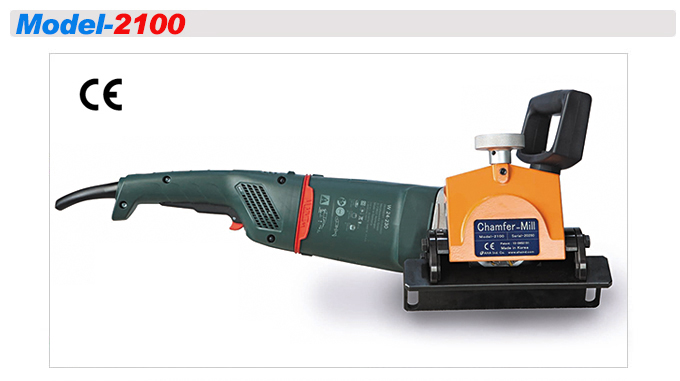

Model-2100 |
..Minimum thickness of workpiece |
3 mm
|
3 mm |
..Minimum beveling width |
0
|
0 |
..Maximum beveling width(B) |
10 mm |
21 mm |
..Maximum beveling thickness(45°)(A) |
7 mm |
15 mm |
..Adjustable angle |
15°~60°
|
15°~60° |
..V-block
length |
224 mm
|
224 mm |
..Number
of insert tips |
5 |
10 |
..Motor specifications |
single phase 230V
50/60Hz
2400W |
single phase 230V
50/60Hz
2400W |
..Weight |
10.4 kg |
10.6 kg |
..Manufacturer |
AHA Industrial |
|
|
